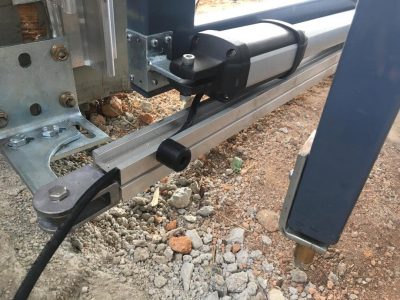

The Electric Gate Motor
The backbone of any electric gate, whether automatic or not, is the electric gate motor, two distinct motor types exist hydraulic, or electromechanical. This is the electric device which actually enables the electric gate to open and close without having to manually push the gate.

Electric Gate Safety
The safety of an automated gate is an important consideration, in the European Union, automated gate safety is specified by a series of European Normalisations. An automated gate that has not been fitted with safety in mind can potentially become a major hazard particularly to untrained users. Various safety devices are available to make sure that your gates meet the highest of European or American safety standards.

Gate and Security
Since electric gates operate slowly, they don’t offer good protection against unauthorized entrance. If security is a problem a video surveillance camera should be installed.

Electric gates alone, however solid and imposing they may be, cannot guarantee a completely secure environment electric locks, are often needed to boost the locking effectiveness of the gate motors. Electric gates are recommended to be used in combination with other security features to install a full security system. A few of these features are closed circuits with security cameras, additional gates in conjunction with the main gate, electronic keycards and keypads, security guards.

Aside from the additional security features that should go with parking barrier gates, electric security gates often offer safety features like sensors that determine when there is an obstruction to prevent the electronic gate from swinging into a vehicle or closing on somebody’s hands. To prevent the electronic gates from being damaged by irresponsible drivers driving fast speed bumps are also commonly placed before gate entrances to slow down vehicles.

Safety Regulations
In the United States all the electric gate installations must meet Underwriters Laboratories 325 (UL 325) standard while in Europe installations must meet with the Machinery directive 2006/42/EC with EN13241-1 being the regulations concerning gates.

The installer of the gate is responsible for the conformity to regulation, not the manufacturer. The two main EN regulations that then apply are EN 12453 which describes the safety levels that should be observed when installing a gate and EN12445 which describes the testing method that must be undertaken.

The major points are the maximum amount of force at certain test points. Example – a maximum of 400N of force can be applied in the last 50, 300 and 500 mm of travel of a gate, after the initial impact the force must drop to 150N within 0.75 of a second and reduce to 25N within 5 seconds. During the mid travel of a gate the allowable force is 1400N. A full risk assessment of the gates must take place with all crush, cutting points shown to the client with appropriate protection devices offered, a recommended maintenance program should also be provided. Finally the installer must confirm that all electrical equipment fitted has the European CE mark all the time.

To conform to these regulations the gate system must be checked with a calibrated force tester and the full results kept in a technical file for 7 years. If the gate is not tested it does not comply.

Most gate kits can be fitted with safety equipment so that these limits are achieved and so cover that part of EN13241-1.

In September 2010, following two incidents in Bridgend and Manchester, when children were killed by sliding gates, the UK Health and Safety Executive issued 2 safety notices aimed at gate manufacturers and installers, demanding them to comply with the Annex A of BS EN 12453:2001 standard
